Metal Detectors

Triad Enterprises offering Top Quality Metal Detectors for Food product inspection, needle detector for garments and textile product, conveyor check weighed for product weight sorting process since many years from our valued partner.

Needle Detector and Metal Detector for Garments and Textile Product.

Metal Detector and Metal Detection Machine for Food Product inspection
(Food small food product to heavy product inspection).

Free Fall Metal Detectors / Gravity Metal Detectors for Powder Products.

Needle Detector

Features

Cycled magnetic sensor, excellent anti-disturb performance.

The core system and part of digital signal processing are based on high speed 32bit RISC CPU.

Use touch screen technology and based on multi-language operation system.

Accurate metal or needle chips locating technology, many customer define functios, easy to use.

Individual sensibility adjusting for every channel, fit for more product detecting.

Smart report system, provide kinds of report.

The control systems are vased on RS-485 bus technology.

Installed machine state indicator and operator guider which are based on matrix LED display technology.

Purpose

Detecting the metal chips inside the sewing products.

Fabric products pharmaceutical products, chemical products, rubber products, food, etc.

Speciafications

Model: TRIAD-ZED-DEE-630D(100)

Detection method: Magnetic induction

Detection sensitivity: 0.8mm steel to samll scissors

Detection adjustment: MAX.100 steps/channel

Detection width: 650mm

Alarm method: Buzzer, LED indicator

Belt speed: 32m/min(50HZ), 40m/min(60HZ)

Power source: AC100-240V 50-60HZ

Rated output: Appr140W

Dimension: 1650mm(L)*1100mm(W)*900mm(H)

Weight: Appr220Kg

Free Fall Metal Detector (for Power product)

Appliacation

Metal impurities detecting in Food, Pharmaceutical, Food ingredients, Condiment, Health care things, particle plastic and farinose particle etc.

Features

Whole stainless steel structure with detecting head.

Adopting advanced electric and mechanical designing technique.

Two channel DSP technology advance the high anti-interference ability. And suppress the effect of the products effectively, up to the best detecting condition.

The signal is finished by digital circuit, it is simple to change, and reliable to use.

It able to detect all kinds of metal chips, such as the iron, stainless steel, copper, aluminium and lead, etc.

Interactive interface, the liquid crystal of LCD display, Chinese and English menu ,as well as convenient operation.

Easy to clear, take off and assembel.

Purpose

Detecting the metal chips inside the sewing products.

Fabric products pharmaceutical products, chemical products, rubber products, food, etc.

Speciafications

Model: TRIAD-JAY-EL-IP

P70 P100 P150

Pipe diameter: 70mm 100mm 150mm

Sensitivity: ≥Feφ0.6mm ≥φ0.8mm ≥φ1.0mm

≥SUSφ1.2mm ≥φ1.5mm ≥ φ2.0mm

Install high: 800mm 900mm 1000mm

Speed: 1t/h 2t/h 4t/h

Alarm method:LED with buzzer

Pressure requirement: ≥0.5Mpa

Applied Environment: 10—40℃ Indoor,Humidty less 85%

Power: 220V

Weight: 80Kgs

Metal Detector (for Tablet and Capsule)

Features

New design especial for pharmaceutical, tablet, medicine product inspection.

Adopt advanced detection technology to make sure higher sensitivity with stable application.

Super hight sensitivity.

Adopt biger touch screen display with operation.

Support 99 product parameters record.

Hight speed auto reject system.

Support password setting.

Small design, easy to move and installation.

Meet FDA standard. Approval CE.

Made of Stainless steel.

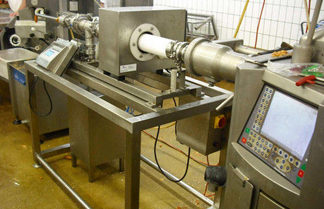

Metal Detector (for Jam / Paste / Sauce / Milk or Liquid product)

Features

Adapt phase discriminating technology that can efectively refrain product effect.

Adapt advanced DSP technology and leading intelligent algorithm which can improve detection Sensitivity and promote stability of the machine.

Design for detection and separation of metal containants from pumped, Liquid and Paste products.

LCD display, English operation menu.

Auto-learning function contributes toautomatically choose suitable working parameters according to different products.

Reliable rejection of contarninants is guaranteed by the use of quick value according to different products characterstics.

Easy to integrate in pipeline system bu quick connnectors.

Memory funcion for registering various products.

High sensitivity.

Made of Stainless steel, fairly good waterproof ability.

Application

The equipment is widely used in James, Meat paste, Glazed, Milk, Chocolate, Sauce, Pickles etc between pump and filling station etc...

Needle Detector (for Cloth / Garment / Shoes / Textile product)

Features

Double detection head high accuracy detection.

ABS-Plastic shell.

LED display control panel with smart counter.

High accuracy detection locating technology, LED indication.

Alarm functions can be divided into three types, saying sound, lamplight and frequency display.

Optional conveying mode after alarm; Optional automatical restart.

Reliability mechanical frame design, high stable during detection.

Designed for universal AC power supply, switch power supply.

Application

It can be used to detect Underwear, Shirts, Knitted sweaters, down and feather garments, Shoes, Socks, Beddings as well as plush medium and small toys.

Speciafications

Model: TRIAD-JAY-CEE-6002/100MM

Detection method: Magnetic induction

Power source: AC200-240V 50-60HZ

Weight: Appr320Kg

Combined Metal Detector and Weight checker

Features

Advanced dynamic weighing and digital processing system is used for quick and stable measurement.

Large-screen display, simple to operate, all test information can be seen simply at a glance.

Ingle-button locking modular transmission device, quick assembling and disassembling, simple and easy belt adjustment.

All-stainless steel framework, in line with the hygiene requirements.

Can be used to detect metal substance in a single product, and check whether the weight is in line with the set value, and so it is an economical and practical solution.

Speciafications

Model: TRIAD-EM-CEE-DEE-A3015

Detection / Checking method: Electromagnetic induction / Digital weighing sensor

Weighing range: 5 gram - 900 grams

Weight: About 160 kilograms
